Manufacturer and service provider of the Cardox CO2 System and the Whipping System. We restore blocked silos, bunkers and hoppers to full capacity — with the crew outside the vessel, every time.
Not sure what you are dealing with? Diagnose your vessel in three questions →
Material stops behaving like a liquid and starts behaving like rock. These are the seven ways it happens — and every one of them costs you storage capacity you have already paid for.
A self-supporting arch forms across the vessel and flow stops completely. It still weighs full — and the arch can collapse without warning onto anyone beneath it.
Material runs down a narrow central channel while the rest sits welded to the wall. The vessel looks like it is working. You are cycling a fraction of its capacity.
Layer after layer hardens onto the wall until the effective diameter shrinks. Capacity falls with the square of the radius, so a modest layer costs far more than it looks.
Moisture binds the material into slabs bonded to the wall. Once it has set, aeration and vibration achieve nothing — the bond has to be broken mechanically.
Material arches over the outlet leaving a cavity beneath. Discharge stops even though the vessel above is full.
Only a narrow core moves. Thick stagnant wedges are left at the walls and never turn over — the oldest stock never leaves.
The cone and outlet choke solid. The conventional fix is a person with a rod, which is the most dangerous job in the plant.
Which one is in your vessel? Answer 3 questions See what we clean, and how

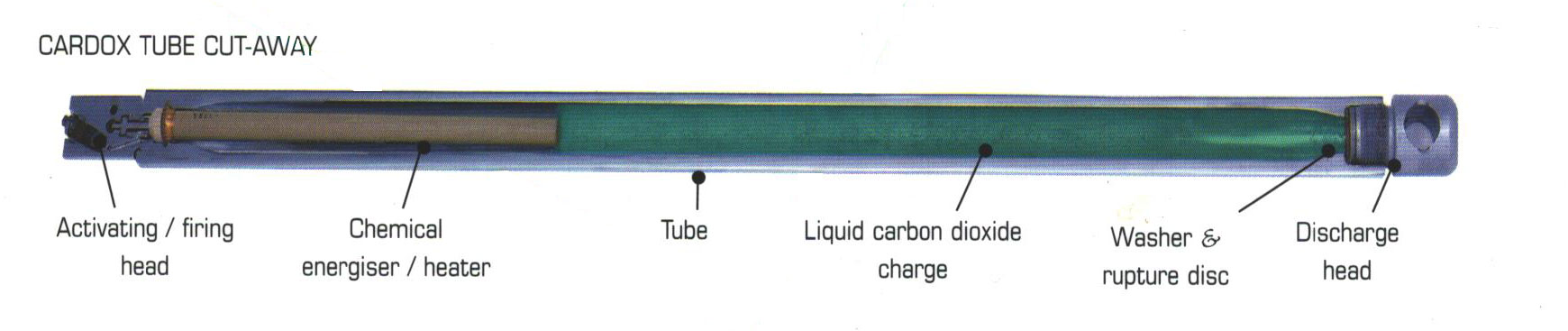

A steel tube of liquid CO2 is energised electrically. The gas expands to 600 times its volume at up to 40,000 psi and breaks the blockage in milliseconds. One tube shifts over 3 tonnes.
Non-explosive, so no licence and no magazine. It works at full operating temperature — and where sockets are fitted to the vessel wall, blockages clear while the plant keeps running.

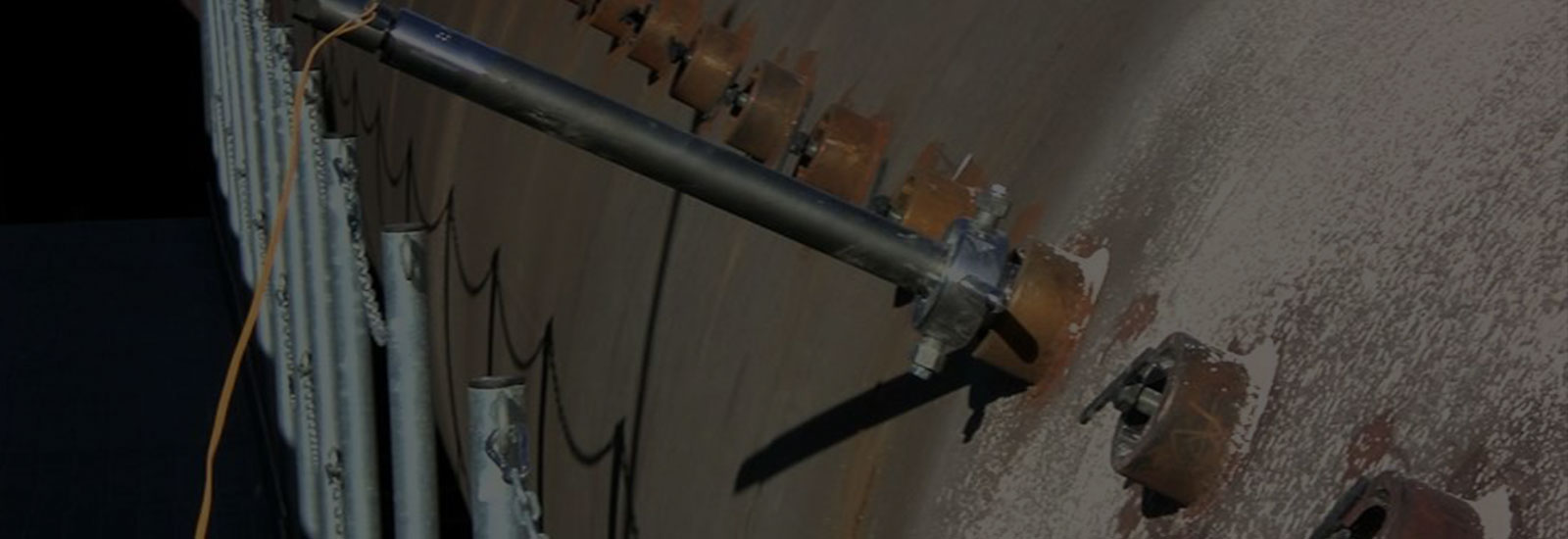

How the Cardox System WorksThe tube set through a wall socket to a pre-determined depth, then fired remotely.

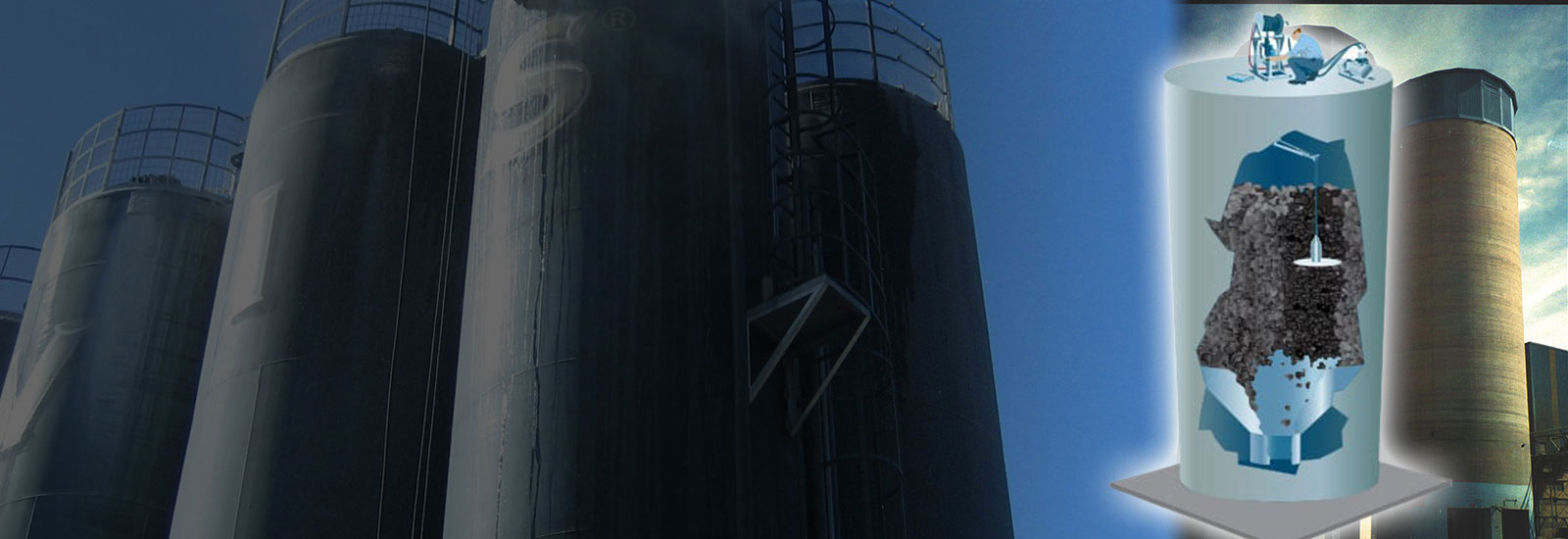

Boom lowered through the top hatch, whipsets cleaning the wall, operator on the roof.
A hydraulic boom enters through the existing top hatch. Chain and hammer whipsets run at 800–1,000 rpm and clean hardened material off the wall as the vessel empties beneath.
Non-destructive — no gouging of concrete, liners, coatings or welds. Whipsets are matched to the material and to the condition of the vessel. We manufacture these machines and run them ourselves.
How the Whipping System WorksFrom small hoppers and bunkers of 100–200 MT right up to 25,000 MT storage silos.
Vessel height is not a limitation — we work silos up to 60 metres from the roof down.
Cement, clinker, raw meal, coal, fly ash, gypsum, soda ash, slag, DRI, rock phosphate, lime and more.
One contractor for the whole problem — the vessel, the blockage, the kiln, the extraction point and the ancillary equipment around it.

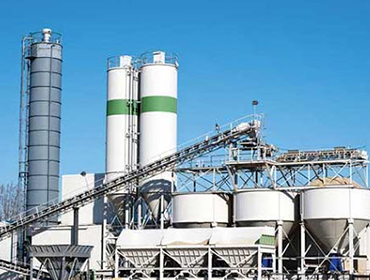

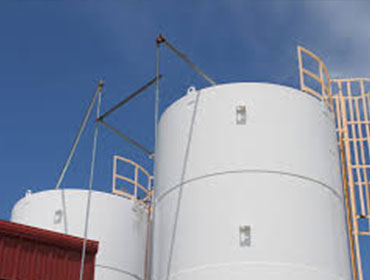

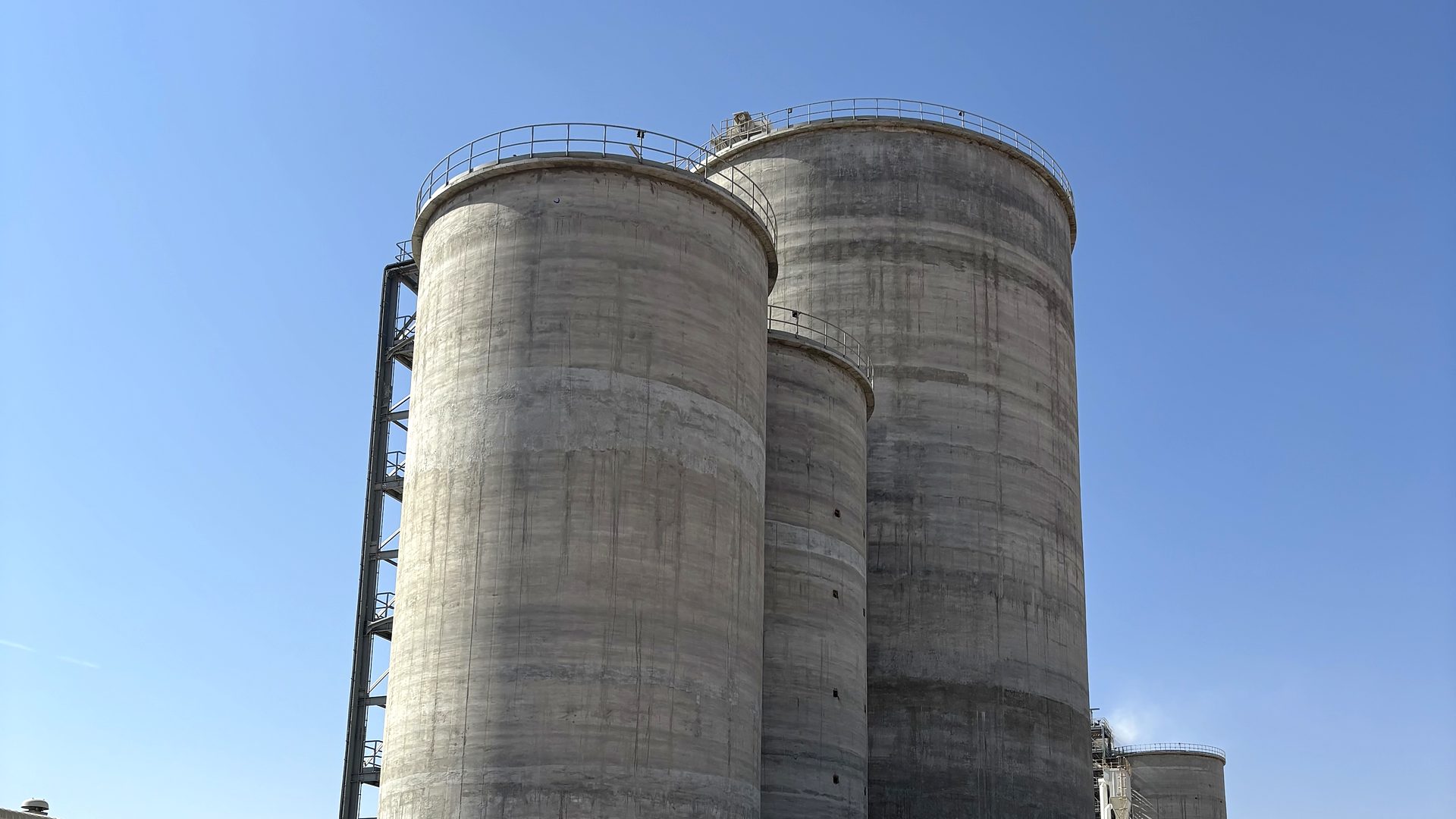

Our core work. Cement, clinker, raw meal, blending, fly ash, gypsum and soda ash silos returned to full rated capacity — worked entirely from the top hatch.

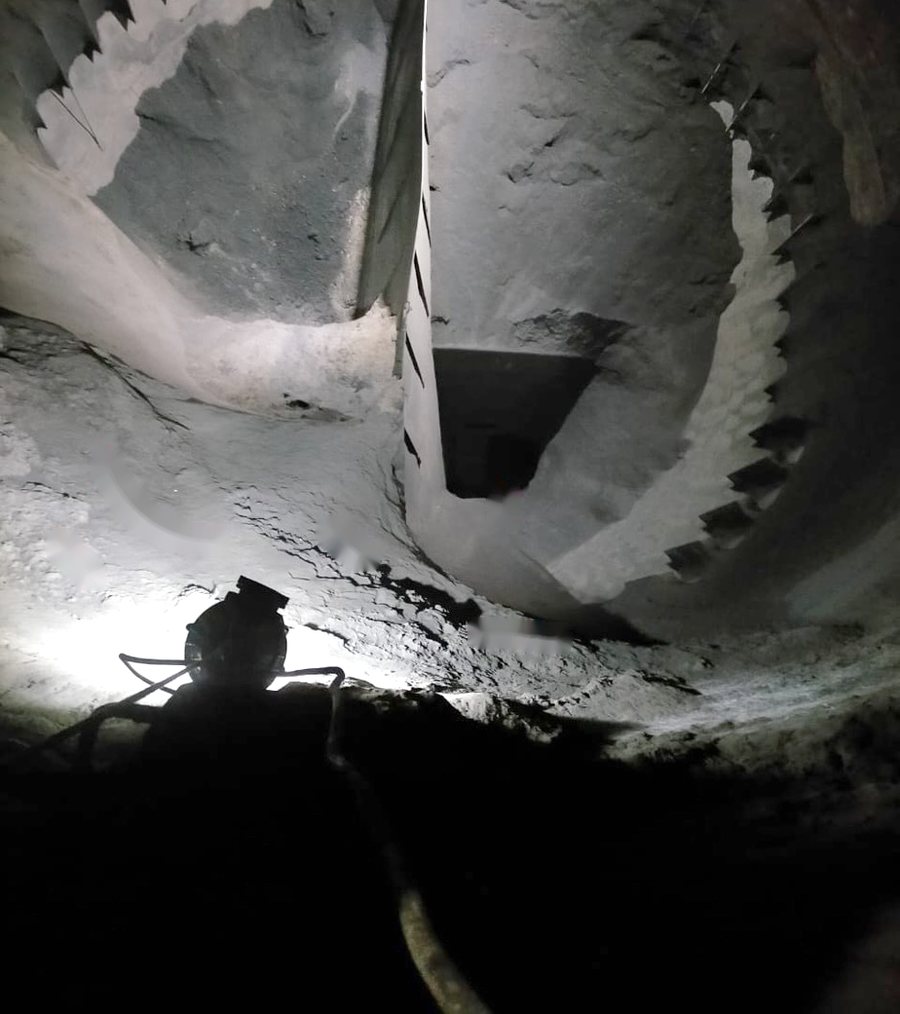

Silo cleaningCoal and pet coke bunkers cleared of hardened build-up and blockages. Reference job: three 380-tonne coal bunkers cleaned in five days, zero confined-space entry.
Bunker cleaningSinter, DRI, slag, rock phosphate and feed hoppers unblocked and returned to free flow — including hoppers that have defeated manual clearing for years.
Hopper cleaningBlocked extraction ports, chutes, outlets and cones cleared with the Cardox CO2 System — in seconds, often while the plant keeps running.

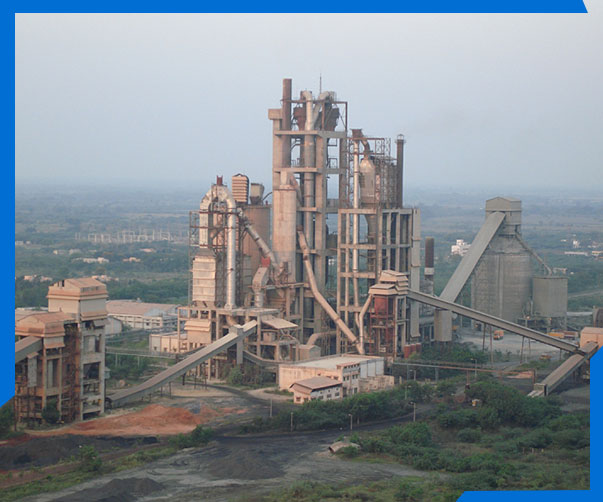

Cardox blockage removalRing build-ups in rotary kilns, blockages in preheater towers, cyclones, riser ducts and coolers, plus blast furnace applications for steel plants.

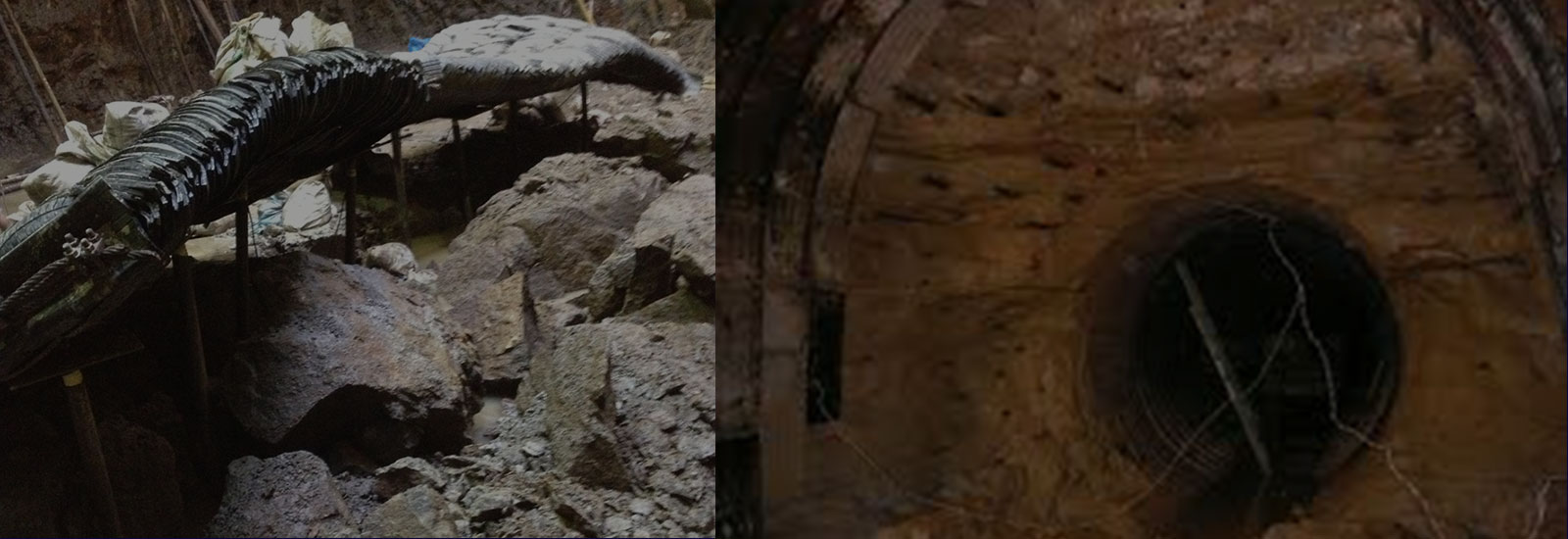

Kiln & preheater workNon-explosive CO2 rock breaking — no vibration, no shock wave, no fly rock. For excavation where blasting is restricted or banned outright.
CO2 rock breakingWe manufacture the Whipping Systems our own crews use, and supply them worldwide with commissioning, training and spares.
Buy the equipmentAir slide cloth replacement and uptake pipe cleaning, carried out inside the same shutdown window as your vessel cleaning to save a second outage.

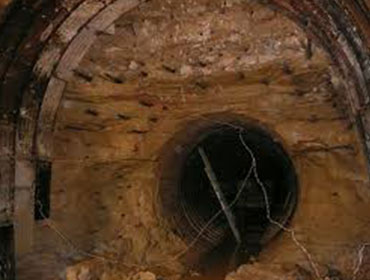

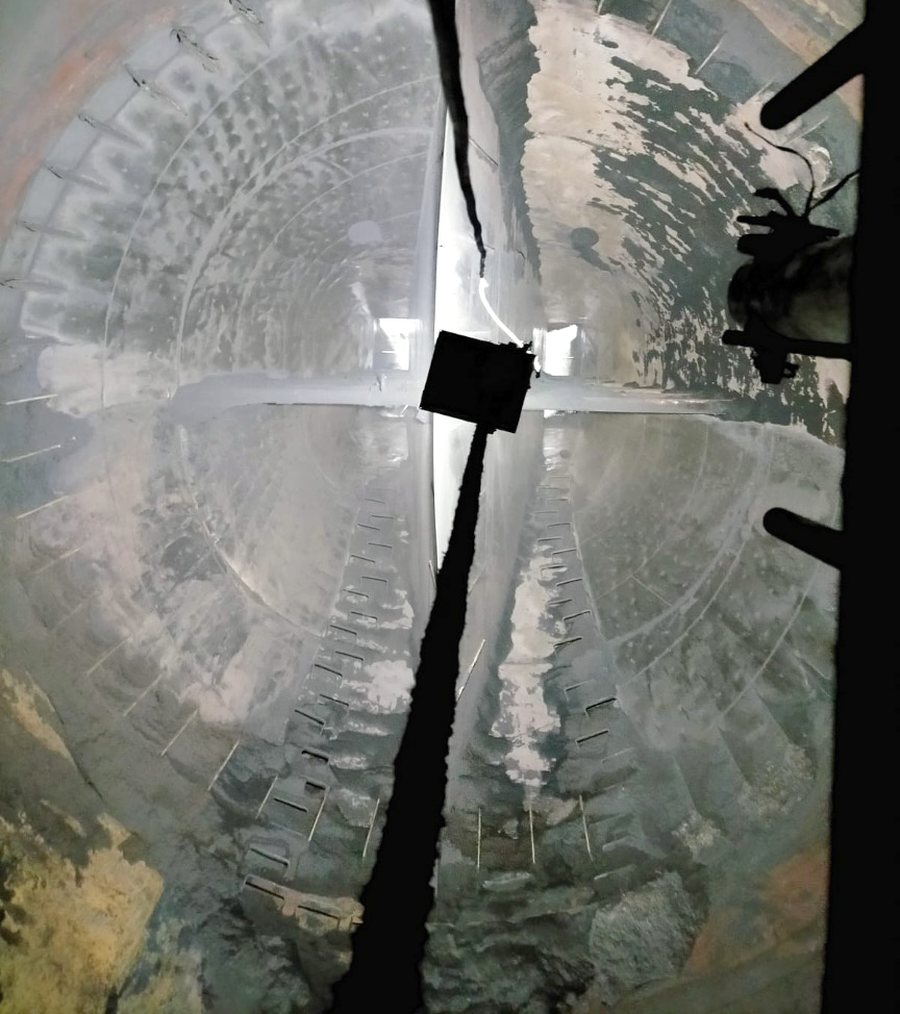

Ancillary servicesEvery job we photograph tells the same story: the vessel restored to bare wall, the equipment still suspended from the top hatch, and a crew that never broke the confined-space plane.
More than 500 silos, bunkers and hoppers cleaned across 55+ plants and 20+ industrial groups, in six countries.
Cement is the work we are free to name — it is not the limit of it.
Sinter, DRI and slag hoppers, flux bunkers, blast furnace hearth work and uptake pipes.
Coal and pet coke bunkers, fly ash silos and ash hoppers — cleared with a method that produces no flame and no spark.
Rock phosphate, soda ash, lime and feed-grade powder silos, where humidity alone cakes the material solid.
Ore hoppers and surge bins, plus rock breaking where blasting is restricted.
Why Cardox India — what to ask any contractor
Twenty-plus industrial groups in six countries. Clients outside cement are under confidentiality — we will still describe the vessel, the material and the result.
We are the manufacturer as well as the service provider for both systems. That means you are not tied to booking a contractor — you can own the equipment, rent it for one shutdown, or simply have us do the work.
A complete Whipping System or Cardox System for your own plant, commissioned on your vessel with your crew trained to run it. Whipsets, tubes, sockets and spares come direct from us — no distributor markup.
Specifications & pricingTake the equipment for a single campaign or shutdown with no capital outlay. Useful where you have your own maintenance crew and just need the machine and the method.
Hire termsWe bring the crew, the equipment, and 30+ years of knowing which whipset to fit and where to place a socket. The route most plants take the first time.
Request a site visitExporting worldwide. The established whipping brands are American and European, and priced accordingly. We build to the same working standard at Indian manufacturing cost, and ship internationally with commissioning, operator training and spares. Distributor and agency enquiries welcome. Equipment & export details →
We have taken crews and machines well beyond India — and we now supply the whipping systems themselves to overseas buyers.
Full animated explainer — how liquid CO2 becomes 600× its volume and moves material that will not move any other way.
Send the vessel type, the material and roughly how long it has been a problem. We come back with an approach, a duration and a price.
Plant already down? Call rather than email — we mobilise for emergencies.
